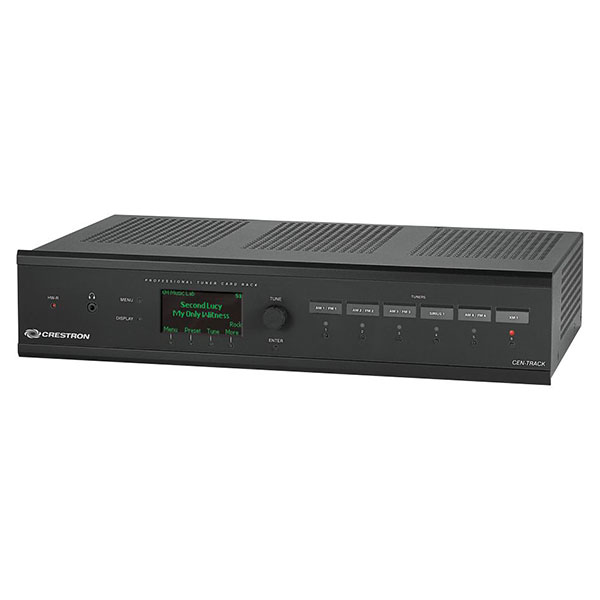

Crestron CEN-TRACK Модульный мультитюнер TunerRack
Вы заказываете: Crestron CEN-TRACK Модульный мультитюнер TunerRack
- Описание
- Характеристики
- Скачать
- Задать вопрос
Предназначено для работы с входными платами радиосигналов Crestron ATC. Оборудовано 6-ю выходами балансных, 6-ю выходами небалансных аналоговых стереофонических аудиосигналов линейного уровня, 6-ю выходами цифрового аудио S/PDIF и одним выходом для подключения наушников. Поставляется с входной платой с двумя приемниками радиосигналов AM/FM диапазона
| Communications | ||
| Ethernet | 10/100 Mbps, auto-switching, auto-negotiating, auto-discovery, full/half duplex, DHCP | |
| USB | USB device port for computer console | |
| Connectors | ||
| SLOT 1 – 3 | (3) Tuner card slots; Accept choice of ATC-series tuner cards |
|
| LAN | (1) 8-wire RJ45 female; 10Base-T/100Base-TX Ethernet port |
|
| COMPUTER | (1) USB Type B female; USB computer console port (cable included) |
|
| SPDIF 1 – 6 | (6) RCA female; S/PDIF coaxial digital audio outputs [4] |
|
| AUDIO 1 – 6 (RCA) | (12) RCA female; Provide (6) unbalanced stereo line-level audio outputs; Output Impedance: 100 Ohms; Maximum Output: 2 Vrms |
|
| AUDIO 1 – 6 (Terminal) | (6) 5-pin 3.5mm detachable terminal blocks; Balanced/unbalanced stereo line-level outputs; Output Impedance: 200 Ohms balanced, 100 Ohms unbalanced; Maximum Output Level: 4 Vrms balanced, 2 Vrms unbalanced |
|
| 24 VDC 2.0A | (1) 2.1 x 5.5 mm DC power connector; 24 Volt DC power input (PW-2420RU power pack included) |
|
| G | (1) 6-32 screw, chassis ground lug | |
| Headphone (front) | (1) 3.5mm mini TRS phone jack | |
| LCD Display | ||
| Green LCD dot matrix, 128 x 64 resolution, adjustable LED backlight; Displays tuner settings, metadata, and setup menus |
||
| Controls and Indicators | ||
| HW-R | (1) recessed miniature pushbutton for hardware reset, reboots the unit | |
| MENU | (1) pushbutton, steps menu back one level | |
| DISPLAY | (1) pushbutton, toggles information displayed on the LCD screen | |
| Soft Buttons | (4) LCD display-driven pushbuttons, select/activate various menu functions | |
| TUNE | (1) continuous turn rotary encoder; scrolls through channels, presets, and other menu lists; adjusts selected parameters | |
| ENTER | (1) pushbutton, executes value set by the TUNE knob | |
| TUNERS | (6) pushbuttons, (6) red LEDs, and (6) 3/8” label slots; select which tuner is being displayed and adjusted | |
| LAN (rear) | (1) green and (1) amber LEDs, green indicates Ethernet link status, amber indicates Ethernet activity | |
| Power Requirements | ||
| Power Pack | 2 Amps @ 24 Volts DC; 100-250 Volts AC, 50/60 Hz power pack, model PW-2420RU included |
|
| Environmental | ||
| Temperature | 41° to 104°F (5° to 40°C) | |
| Humidity | 10% to 90% RH (non-condensing) | |
| Heat Dissipation | 110 BTU/hour | |
| Enclosure | ||
| Chassis | Metal, black finish, convection-cooled, vented top and sides | |
| Faceplate | Extruded aluminum, black finish with polycarbonate label overlay | |
| Mounting | Freestanding or 2U 19-inch rack-mountable (adhesive feet and rack ears included) | |
| Dimensions | ||
| Height | 3.56 in (91 mm); 3.47 in (88 mm) without feet |
|
| Width | 17.03 in (433 mm); 19.0 in (483 mm) with rack ears |
|
| Depth | 10.30 in (262 mm) | |
| Weight | ||
| 6.75 lb (3.06 kg) including 1 tuner card | ||
