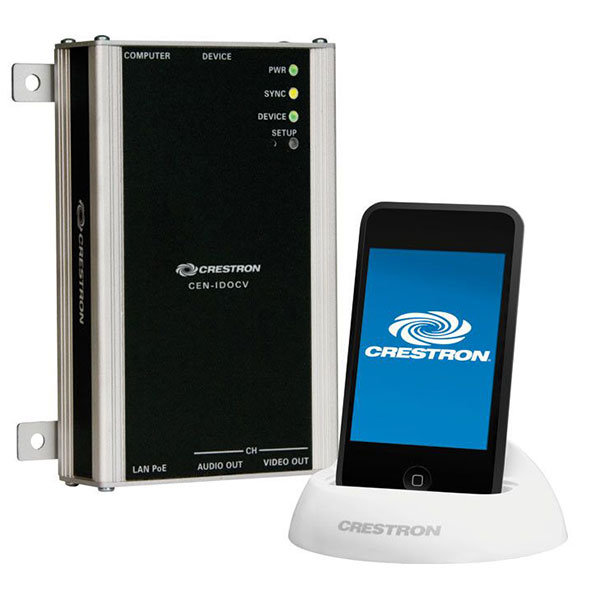

Crestron CEN-IDOCV-W (EXCLUDES PWE) Интерфейс для Apple iPod® с видео, белый
Вы заказываете: Crestron CEN-IDOCV-W (EXCLUDES PWE) Интерфейс для Apple iPod® с видео, белый
- Описание
- Характеристики
- Скачать
- Задать вопрос
Crestron CEN-IDOCV-В-S (EXCLUDES PWE) Интерфейс для Apple iPod® с видео, черный. В комплекте базовая станция CEN-IDOCV-DS-B-S. Требуется PWE-4803RU или эквивалентный PoE источник питания. Требуется ABAR-1 и ABVR-1 или другой CH CAT5 AV интерфейс
| Compatibility | ||
| iPod | For a complete list of supported products, refer to Crestron Online Help Answer ID 4837, or contact Crestron True Blue Support at www.crestron.com/true_blue_support. | |
| Computer | Crestron Sync software is compatible with Mac® OS X v10.4-10.6, Windows® XP, Windows Vista®, and Windows 7 32-bit | |
| Audio | ||
| Signal Types | Analog stereo output via Crestron ‘CH’ CAT5 Balanced Audio port[2] | |
| Video | ||
| Signal Types | Composite and Component (YPbPr) outputs via Crestron ‘CH’ CAT5 Balanced Video port[2] | |
| Communications | ||
| Ethernet | 10/100Mbps, auto-switching, auto-negotiating, auto-discovery, full duplex, DHCP, IEEE 802.3af compliant | |
| USB | USB 2.0 for computer console | |
| Connectors – Front Panel | ||
| LAN PoE | (1) 8-wire RJ45; 10Base-T/100Base-TX Ethernet port, 802.3af Power over Ethernet compliant |
|
| CH AUDIO OUT | (1) 8-wire RJ45 female, shielded; CAT5 balanced stereo audio output port; Connects to any “CH” CAT5 audio input port or bidirectional audio port; Maximum Cable Length: 500 ft |
|
| CH VIDEO OUT | (1) 8-pin RJ45 female, shielded; CAT5 balanced video output port; Formats: Composite, component (YPbPr); Connects to any “CH” CAT5 video input port; Maximum Cable Length: 500 ft |
|
| Connectors – Rear Panel | ||
| COMPUTER | (1) USB Type B female; USB 2.0 device port (cable included); For setup only |
|
| DEVICE | (1) 30-pin female iPod connector; Connects directly to the iPod, or to CEN-IDOCV-DS docking station[4], via 6.5 ft (2 m) 30-pin M to 30-pin F cable (included); Provides 2-way communications, audio, video, and power link to iPod |
|
| Controls & Indicators | ||
| PWR | (1) Green LED, indicates power supplied from PoE | |
| SYNC | (1) Yellow LED, indicates when iPod is synced to iTunes | |
| DEVICE | (1) Green LED, indicates an iPod is connected | |
| SETUP (rear) | (1) Recessed miniature pushbutton and red LED for setting IP ID | |
| LAN PoE | (2) LEDs, green indicates Ethernet link status, yellow indicates Ethernet activity | |
| Power Requirements | ||
| Power over Ethernet | IEEE 802.3af Class 0 PoE Powered Device | |
| Environmental | ||
| Temperature | 41° to 113°F (5° to 45 °C) | |
| Humidity | 10% to 90% RH (non-condensing) | |
| Heat Dissipation | 14 BTU/Hr | |
| Enclosure | ||
| Aluminum w/polycarbonate label overlay, freestanding or surface mount with (4) integral mounting flanges | ||
| Dimensions | ||
| Height | 1.43 in (37 mm) | |
| Width | 4.56 in (116 mm) | |
| Depth | 5.80 in (147 mm) | |
| Weight | ||
| 16 oz (440 g) | ||
